| Lieu d'origine: | Guangdong, Chine |
|---|---|
| Certification: | ROHS |
| Numéro de modèle: | M-TN500 |
| Quantité de commande min: | Négociation |
| Prix: | negotiable |
| Détails d'emballage: | Emballé dans le carton |
| Délai de livraison: | 5~8 jours |
| Conditions de paiement: | T/T |
| Capacité d'approvisionnement: | 100000PCS |
| Matière première principale: | Silicone | Couleur: | Gris |
|---|---|---|---|
| Utilisation: | Conduction thermique | D'autres noms: | mastic conducteur thermique |
| Conduction thermique: | 5W/m.K | Densité (g/cm3): | 3,2 |
| Tension claque (kilovolt (@1m m): | >10.0 | La température de service continu (°C): | -60 à 200 |
| Mettre en évidence: | Mastic conducteur de 60 rivages C thermiquement,Pâte de radiateur de silicone de 60 rivages C,pâte de radiateur du silicone 5W/m.K |
||

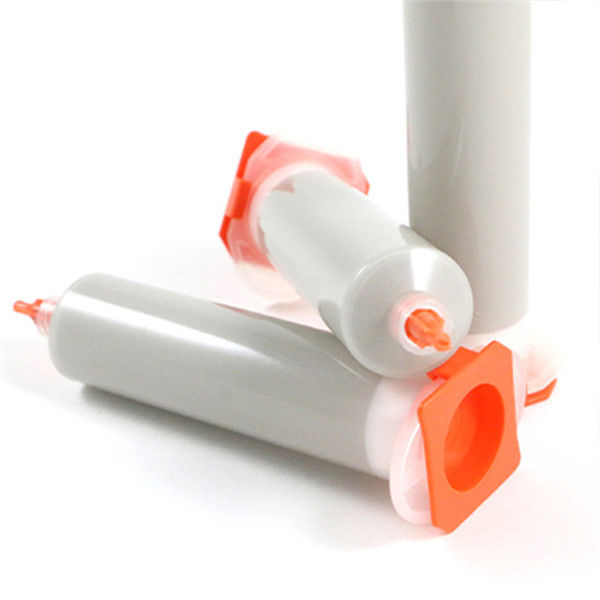

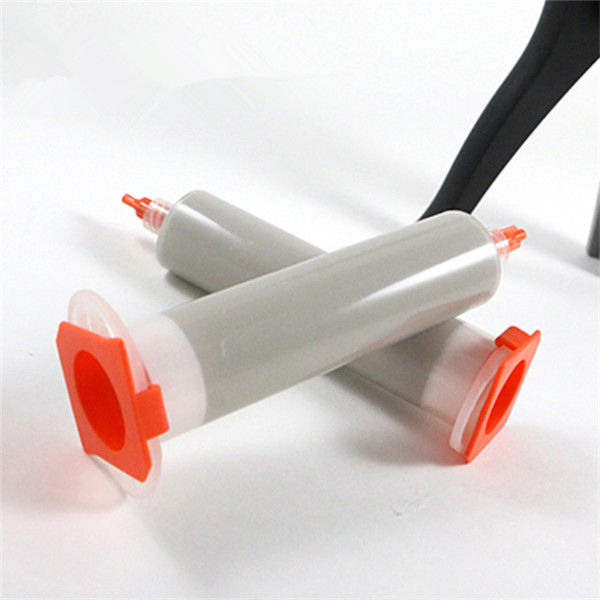

5W/M.K Hardness 30-60 ShoreC Silicone High Thermal Conductive Putty Grease Paste
|
Property |
Unit |
M-TN500 |
Test Method |
|
Color |
- |
Multicolor |
Visual |
| Extrusion rate | g/min | 30 | 30cc Syringe & 0.1”Needle @90psi |
|
Hardness |
Shore OO |
30-60 |
- |
|
Thermal conductivity |
W/m·K |
5.0 |
ASTM D5470 |
|
Thermal resistance |
@ 20 psi |
0.08°C·in2/W 0.51°C·cm2/W |
ASTM D5470 |
|
Flame Rating |
- | 94 V-0 | U.L. |
|
Breakdown Voltage |
kV(@1m m) |
＞10.0 |
ASTM D149 |
|
Volume |
Ω·cm |
1.0×1014 |
ASTM D257 |
|
Density |
g/cm3 |
3.2 |
ASTM D792 |
|
Dielectric Constant |
@1 MHz |
6.3 |
ASTM D150 |
| Permeability TML (CVCM) |
% |
≤0.15 (0.05 |
ASTM E595 |
| Continuous service temperature |
°C |
-60 to 200 |
*** |
|
RoHS Compliant |
- |
Yes |
*** |
Features
Thermal conductivity : 5.0 W/m·K
Fluid-type thermal conductive filling material
Good plasticity, can replace the use of thermal conductive silicone grease
Excellent wettability to reduce contact thermal resistance
Flame Rating :V-0
Product Detail
Packing & Shipping
FAQ
1. What are your main products?
We supply thermally conductive pad, graphene Material, thermal adhesive tape, thermally double component silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal grease. Samples of silicone thermally conductive sheet are available, but the freights need to be paid by the buyers.
2. What about the product quality and which certificate do you have?
We have UL certificate,ISO9001,ISO14001 and ROHS certificate.
3. How long does it take to deliver after order?
For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as
possible according to actual situation and customer's requirements.
4. What about your after-sale service?
We fully guarantee our product quality and will provide free technical guidance on operations.
