| Lieu d'origine: | Guangdong, Chine |
|---|---|
| Certification: | ROHS,UL,REACH |
| Numéro de modèle: | M-TP100 |
| Quantité de commande min: | Négociation |
| Prix: | negotiable |
| Détails d'emballage: | Emballé dans le carton |
| Délai de livraison: | 3~7days |
| Conditions de paiement: | T/T |
| Capacité d'approvisionnement: | 10000Pieces/Day |
| tension évaluée: | 6KV, 25KV, 600V, 6Kv/ac, 10kv | Résistance à la traction: | 10.4Mpa, 5.88Mpa, excellent, 8kg/cm2,2.2 KN/M |
|---|---|---|---|
| Nom de produit: | Protection thermique diélectrique de silicone conducteur thermique de protection | Utilisation: | LED, électronique etc. |
| Matériel: | Silicone | Couleur: | Bleu, rose, gris ou costomized |
| Hardness: | 18±5~40±5 rivage C | Échantillon: | Disponible fourni |
| Mettre en évidence: | protection 8kg/cm2 conductrice thermique,protection en caoutchouc conductrice de la chaleur 8kg/cm2,protection de l'isolation 6Kv/ac thermique |
||

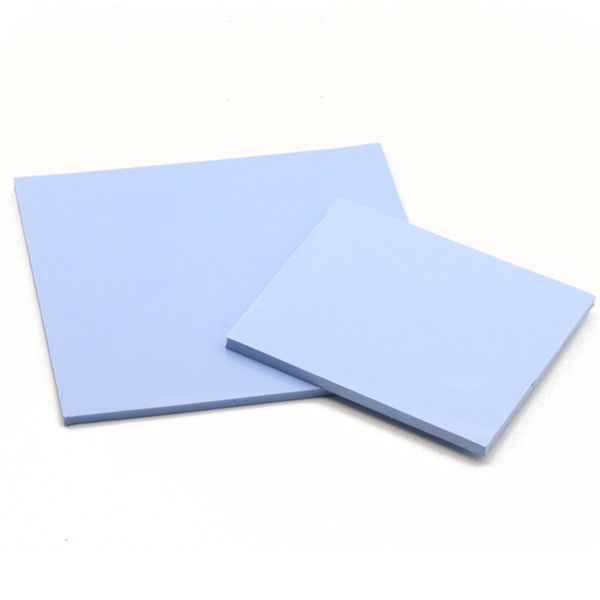

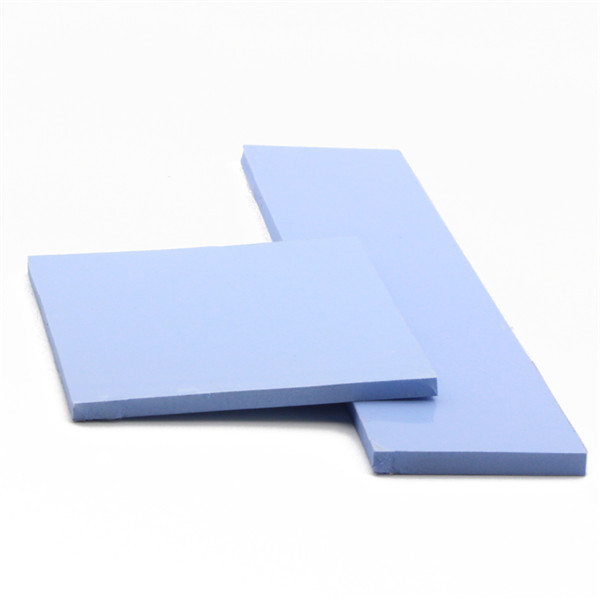

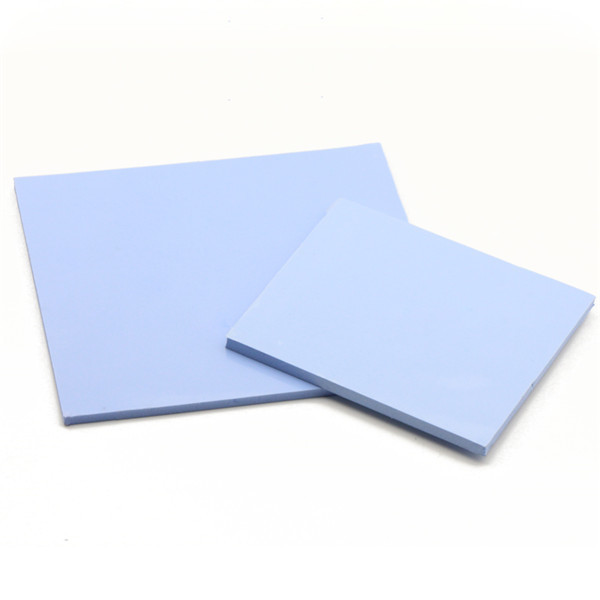

High Cooling Gap Filler Insulation Silicone Rubber Conductive Thermal Pad
Product Description
|
Product Name
|
silicone pad
|
|
Material
|
silicone
|
|
Feature
|
insulation, shock absorption,certain flexibility, excellent insulation, compressibility, surface viscosity and natural design
|
|
Applications
|
electrical and electronic products
|
Thermal interface silicone material is high-performance,thermal conductive gap filling materials, mainly for the transmission interface between the electronic equipment,and heat sink or product outer coving.
With nice stickiness,flexibility, good compression performance and excellent heat conductivity designed for it,it makes the products can discharge gas from the electronic original and heat sink, to achieve fully conforming and obviously cooling effect.
Physical Properties
|
Properties |
M-TP100 |
Unit |
Tolerance |
Test Method |
|
Composition |
Filled silicone elastomer |
— | ||
|
Color |
Multicolor |
— |
— |
Visual |
|
Thermal conductive |
1.0 |
W/m.K |
±10% |
ASTM D5470 |
| Thickness |
10~400(1mil=0.0254mm) |
mil |
±10% |
ASTM D374 |
|
0.0254~10 |
mm |
ASTM D374 |
||
|
Hardness |
40~90 |
Shore 00 |
— |
ASTM D2240 |
|
Density |
1.3 |
g.cm-3 |
— |
— |
|
Temperature Range |
-40～+200 |
℃ |
— |
— |
|
Breakdown Voltage |
>3000(0.25mm~0.5mm) |
V |
— |
ASTM D149 |
Product Details
Packaging & Shipping
Our Services
|
Thermal interface silicone material is our core competencies!
1:Competitive advantage products
2:Full payment refund in case of bad quality
3:Confidentiality agreement(business contract)
4:Quality assurance contract
5:Free sample offer & small order welcomed
6:Payment by Paypal
7:After sale service 24*6 |
Q1: What's the thermal conductivity test method given on the data sheet ?
