| Lieu d'origine: | Guangdong, Chine |
|---|---|
| Certification: | ROHS,UL,REACH |
| Numéro de modèle: | M-TP200 |
| Quantité de commande min: | Négociation |
| Prix: | negotiable |
| Détails d'emballage: | Emballé dans le carton |
| Délai de livraison: | 3~7days |
| Conditions de paiement: | T/T |
| Capacité d'approvisionnement: | 10000Pieces/Day |
| Matériel: | Silicone | Hardness: | 18±5~40±5 rivage C |
|---|---|---|---|
| Application: | Haute tension | Échantillon: | Aperçu gratuit |
| Nom de produit: | Protection thermique diélectrique de silicone conducteur thermique de protection | Taille: | 200*400mm. Adapté aux besoins du client admis |
| Couleur: | Blanc, bleu, rose, gris | Type: | protection de courant ascendant de silicone |
| Mettre en évidence: | protection conductrice thermique du silicone 2.1g/cc,protections de mousse 2.1g/cc thermiques,protections de mousse thermiques d'épaisseur de 0.3mm |
||

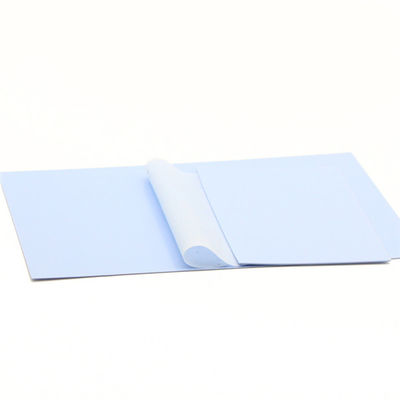

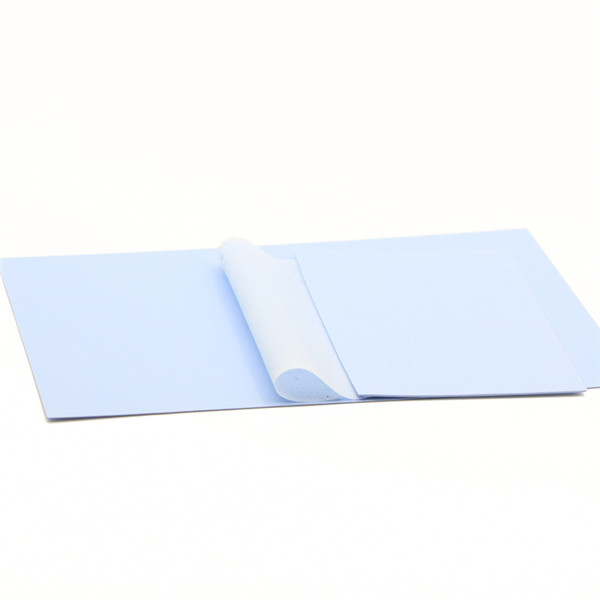

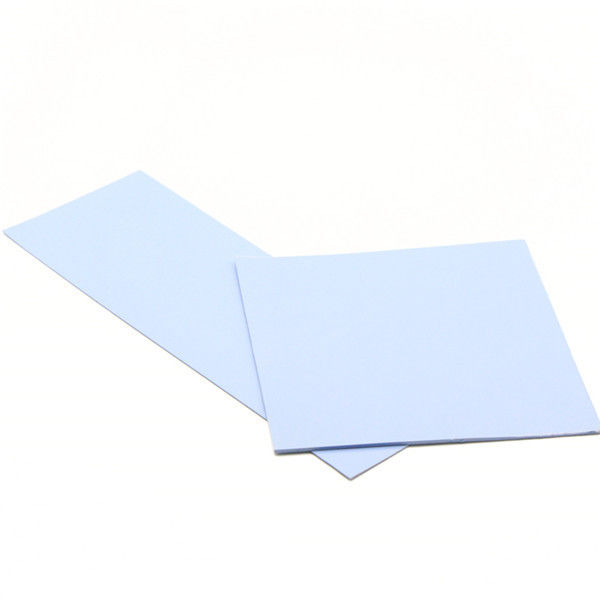

Light Blue Thin And Effective 2.0W/MK Thermal Conductive Silicone Pad
Product Description
Heat Resistant Silicone Adhesive Thermal Pad With Fiber Glass is made of Low-modulus silicone polymer and reinforced with Fiberglass. It maintains optimal thermal performance and yet still allows for easy handling. Its insulation and tensile strength are higher than normal thermal pads.
Features
* Thermal Conductivity: 2.0W/m-k
* Tear resistant, soft and conformable
* Excellent electrical insulation
Application
* Telecommunications, computer and peripherals
* RDRAM memory modules./chip scale packages
* Power conversion, barrater, power supply, Automobile, etc
Physical Properties
|
Property |
Test Value | Test Method |
|
Reinforced Carrier |
Fiberglass | ----- |
|
Pad Type |
Silicone Polymer | ----- |
|
Thickness(mm) |
0.30~1.00 | ASTM D374 |
|
Color |
Light Blue | VISUAL |
|
Density(g/cc) |
2.1 | ASTM D792 |
|
Hardness(Shore C) |
25±5 | ASTM D2240 |
|
Thermal Conductivity(W/m-k) |
2.0 | ASTM D2240 |
|
Voltage Resistance(KV/mm) |
>4.0 | ASTM D149 |
|
Temperature Resistance(℃/℉) |
-40~+220(℃) | ASTM D5470 |
|
Volume Resistance(Ω .cm) |
5.0*1013 | ASTM D257 |
|
Flame Rating |
V-0 | UL-94 |
Note: The above technical information and data should be considered representative or typical only and should not be used for specification purposes.
Shelf Life
Product shelf life is 2 years from date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the products original packaging.
Available Sizes
Width: Can be Customized
Length: Can be customized
Custom Sizes: If you need customized sizes or die cut parts please feel free to contact NKS sales representative.
