| Lieu d'origine: | LA CHINE |
|---|---|
| Certification: | ROHS,UL,REACH |
| Numéro de modèle: | LM-PCM |
| Quantité de commande min: | Négociation |
| Prix: | negotiable |
| Détails d'emballage: | Emballé dans le carton |
| Délai de livraison: | 3~7 jours de travail |
| Conditions de paiement: | T/T |
| Capacité d'approvisionnement: | 100000pcs/day |
| Matériel: | Silicone | Couleur: | Adapté aux besoins du client (gris, noir, blanc, rose, etc. bleus) |
|---|---|---|---|
| Nom d'article: | Matériel de changement de phase | La température fonctionnante: | -40~+200 degré Celsius |
| Estimation de flamme: | VO DE L'UL 94 | Application: | À hautes températures, LED, unité centrale de traitement, TV, carte PCB, PC, PDP Chip Etc |
| Résistance à la traction: | 8-55KG/CM2 | densité (g/cm3): | 2.5g/cc |
| Mettre en évidence: | 2.5g/cc thermal phase change material,0.01mm thickness pcm phase change material,2.5g/cc pcm phase change material |
||
Density (g/cm3) 2.5g/cc High Efficiency Phase Change Thermal Interface Materials
PCM(phase Change Material) is a substance that changes shape with temperature and provides latent heat. The process of changing the material from a solid to a liquid or a solid state is called a phase transition, and the phase transition material will absorb or release a large amount of latent heat.
|
Phase Change Material Features & Benefits |
|
|
1:Thrmal conductivity:2.5w/m.k |
|
|
2.Phase change at 50 degree to 65 degree |
|
|
3.Naturally sticky at a room temperature |
|
|
4.Meet with the environmental requirements of ROHS and UL |
|
|
5.No preheating required |
|
|
Phase Change Material Typical Applications
|
|
|
Communication equipment |
Mobile equipment |
|
LED Light |
Video equipment |
|
Switching power supply |
Networking equipment |
|
Back light model |
Household appliances |
|
Medical equipment |
PC server/workstations |
1.The filling between PCB and heat sink
2.The filling between IC and heat sink or product outer coving
3.The filling between IC and similar heatsink cooling materials
Phase Change Material Products Parameter
|
Test item |
Test method |
Unit |
Test Value |
|
Color |
Visual |
- |
Grey |
|
Thickness |
ASTM D374 |
mm |
0.003"/0.005"/0.008"/0.010"mm |
|
Thickness tolerance
|
ASTM D371 |
mm |
±0.016 |
|
Specific Gravity |
ASTM D792 |
G/CM3 |
2.5 |
|
Dielectric Constant |
ASTM D150 |
1MHZ |
3.0 |
|
Continuous Use Temp |
EN344 |
℃ |
-40 to +200 |
|
Volume Resistivity |
ASTM D257 |
Ω-CM |
2.0*1013 |
|
Phase change soften temperatire |
- |
- |
50~60°c |
|
Conductivity |
ASTM D5470 |
W/M.K |
2.5w/m.k |

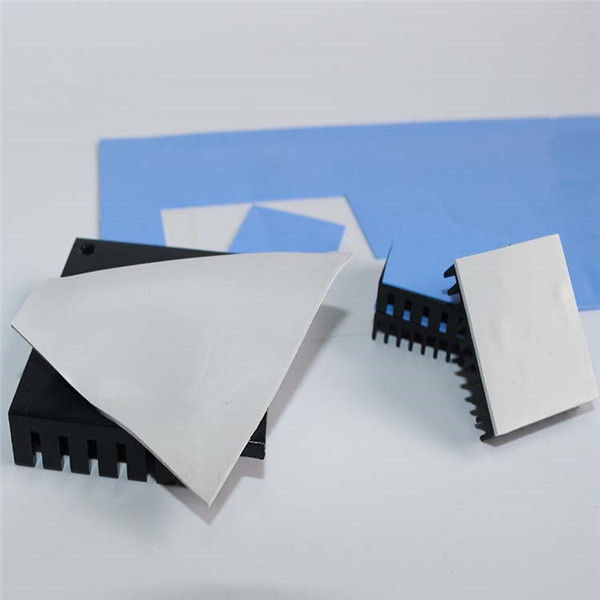

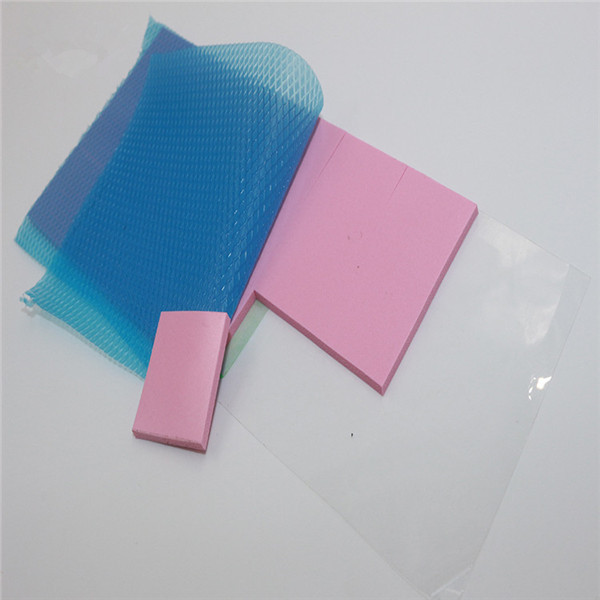

Product Details
Package And Shipping
Q:What’s the thermal conductivity test method given on the data sheet?
A: All the data in the sheet are tested out by the third party. ASTM D5470 is utilized to test the thermal conductivity.
Q: How to find a right thermal conductivity for your application?
A: It depends on the watts of power source, ability of heat dissipation. For any customers, please contact us for the technical support.
Q: Are thermal pads offered with tacky?
A: Yes, all the thermal pads have its inherent tacky. All the models are natural tacky for two sides, except for the LCP series ,only one side has natural tacky. LCB series thermal pads can be cover 3M glue with strong
adhesive.
Q: Are thermal pads reworkable?
A: It’s depend on the application and the pad being used. Thermal pads have been reused before, however,it’s up to the judgment of product designer, to see whether the pads could withstand reuse.
Q:Will the heat make the thermal pads softer?
A: ShoreC 20~80 ,there is no significant change in the hardness of thermal pads, as gap filler.
Q: What’s the tolerance for the thickness?
A :Normally ±0.1mm.
Q: Are the thermal pads electrical insulating?
A: Yes, all thermal pads are electrically isolated.
Q: What’s the shelf life for thermal pads?
A: Shelf life for thermal pad is one year after the date of manufacture. For the pads with adhesive, the shelf life is 6months after the date of manufacture. After these dates, all the characters should be retested.
Q: Can the thermal pads be with fiberglass?
A: YES, we could have thermal pads with fiberglass center to improve customer specific requirements for the tensile strength.LCP series has fiberglass on its surface, all other models will be made at your requirement.
